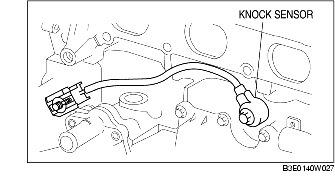

KNOCK SENSOR (KS) REMOVAL/INSTALLATION [L3]

1. Disconnect the negative battery cable.

2. Remove the intake manifold.

3. Disconnect the knock sensor connector.

4. Remove the KS installation bolt, then remove the KS.

5. Install in the reverse order of removal.

KS installation bolt tightening torque

16-24 N·m {1.7-2.4 kgf·m, 12-17 ft·lbf}
