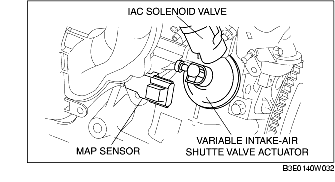

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL/INSTALLATION [L3]

1. Disconnect the negative battery cable.

2. Disconnect the MAP sensor connector.

3. Remove the MAP sensor installation screws.

4. Remove MAP sensor from the intake manifold.

5. Install in the reverse order of removal.

MAP sensor installation screws tightening torque

2.7-3.7 N·m {28-37 kgf·cm, 24-32 in·lbf}
