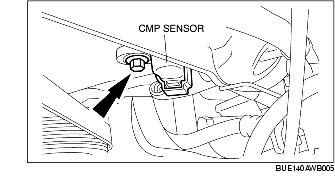

CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [YF (2.0L Zetec)]

1. Disconnect the CMP sensor connector.

2. Remove the CMP sensor installation bolt.

3. Remove the CMP sensor.

4. Install in the reverse order of removal.

CMP sensor installation bolt tightening torque

10 N·m {102 kgf·cm, 89 in·lbf}
