REAR SHOCK ABSORBER REMOVAL/INSTALLATION

1. Remove the upper shock absorber nut.

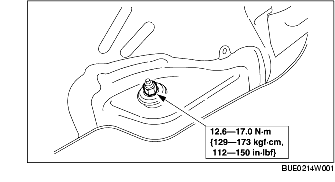

(1) Remove the rear quarter trim panel and upper shock absorber nut.

2. Raise and support the vehicle enough to relax the suspension system.

3. Remove the shock absorber.

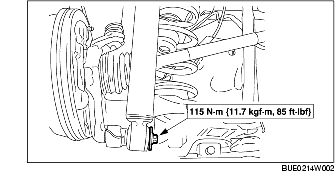

(1) Remove the lower shock absorber nut.

(2) Remove the shock absorber.

4. Install in the reverse order of removal.
