WHEEL HUB BOLT REMOVAL/INSTALLATION

1. Remove the brake caliper component and disc plate.

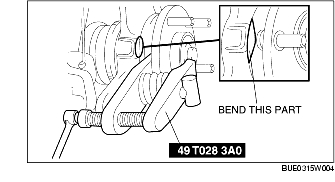

2. Remove the wheel hub bolt using the SST as shown in the figure.

Note

• If the dust cover interferes with the wheel hub bolt and the wheel hub bolt cannot be removed, tap the part shown in the figure with a chisel and bend the processing point back to the steering knuckle side.

3. Place a new wheel hub bolt in the wheel hub.

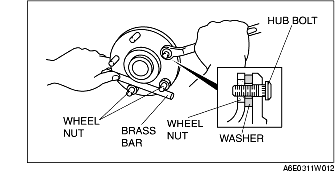

4. Install the wheel hub bolt by placing a proper sized washer on the hub and tightening the nut as shown in the figure.
