PROPELLER SHAFT INDEXING

Note

• If a propeller shaft is installed and propeller shaft vibration is encountered after installation, index the propeller shaft.

• If indexing the propeller shaft does not eliminate the vibration, balance the propeller shaft.

1. Lift up the vehicle.

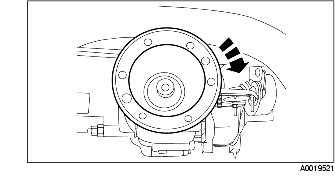

2. Disconnect the front propeller shaft and rotate the flange 60×.

3. Connect the front propeller shaft.

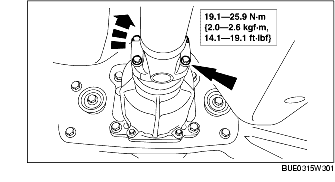

4. Disconnect the rear propeller shaft universal joint and rotate 180×.

5. Connect the rear propeller shaft.

6. Lower the vehicle and test drive.

7. Repeat the procedure if necessary.
