PARKING BRAKE LEVER INSPECTION


id041200800900

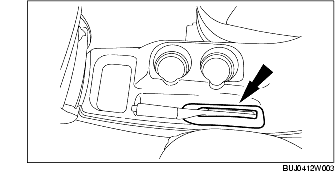

1. Remove the parking brake lever trim.

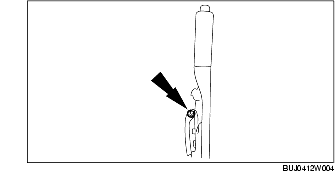

2. Turn the adjusting nut so that the parking brake lever stroke is between 3-5 notches when pulled.

3. Verify that the parking brake operates.
