REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION

1. Remove the wheel and tire assembly.

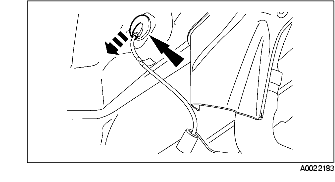

2. Detach the grommet from the vehicle and pull out the ABS wheel-speed sensor connector.

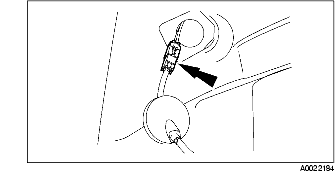

3. Disconnect the ABS wheel-speed sensor connector.

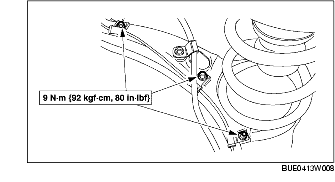

4. Remove the bolt.

5. Remove the bolts.

6. Remove the bolt and the ABS wheel-speed sensor.

Note

• Before removal, clean off any dirt that may have collected around the ABS wheel-speed sensor.

7. Install in the reverse order of removal.

Note

• Thoroughly clean the mounting surface.
