FLYWHEEL INSPECTION

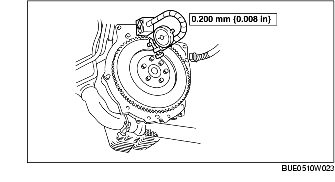

1. Mount the dial gauge so that the indicator contact point rides on the clutch disc contact surface.

2. Rotate the flywheel and inspect the runout.

• If it exceeds the maximum specification, replace the flywheel.

Maximum runout

0.200 mm {0.008 in}
