CLUTCH PEDAL REMOVAL/INSTALLATION


id051000801200

1. Disconnect the negative battery cable.

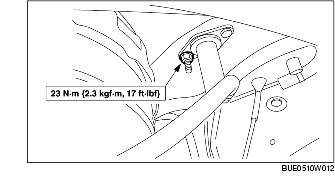

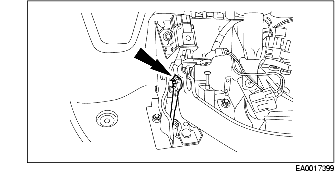

2. Remove the clutch master cylinder nut.

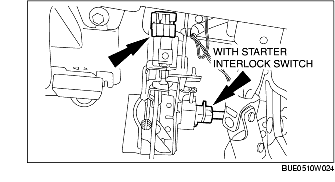

3. Disconnect the clutch pedal position switch connector and starter interlock switch connector.

4. Disconnect the clutch master cylinder rod from the clutch pedal.

5. Remove the clutch pedal.

(1) Remove the nuts.
(2) Remove the clutch pedal.

6. Install in the reverse order of removal.
