CLUTCH HOUSING LOCATING DOWELS REMOVAL/INSTALLATION [G15M-R, G25MX-R]

1. Remove the flywheel.

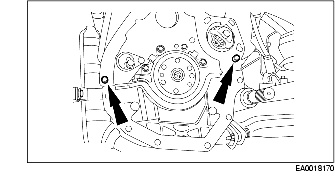

2. Remove the clutch housing locating dowels.

Note

• Care should be taken not to damage the dowel holes or the surrounding surface areas during removal.

3. Install the clutch housing locating dowels.

Note

• Care should be taken to install the dowel squarely into place until it is fully seated and to not damage the surrounding surface areas.

4. Install the flywheel.
