NO.2 ENGINE MOUNT REMOVAL/INSTALLATION [G15M-R, G25MX-R]

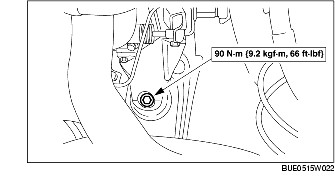

1. Using the SSTs, support the engine.

2. Remove the No.2 engine mount installation bolt.

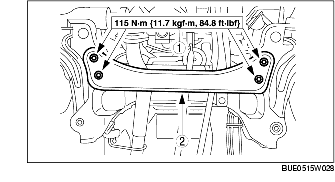

3. Lift up the vehicle.

4. Remove the transverse member.

(1) Remove the bolts.

(2) Remove the transverse member.

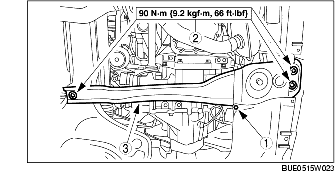

5. Remove the engine mount member.

(1) Remove the splash shield screw.

(2) Remove the bolts and the nut.

(3) Remove the engine mount member.

6. Install in the reverse order of removal.
