NO.1 ENGINE MOUNT REMOVAL/INSTALLATION [G15M-R, G25MX-R]

id0515a6867400

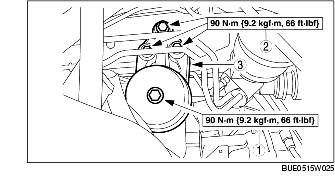

1. Using the SSTs, support the engine.

2. Remove the No.1 engine mount rubber.

(1) Remove the bolt.

(2) Remove the bolt and the nuts.

(3) Remove the No.1 engine mount rubber.

3. Install in the reverse order of removal.
