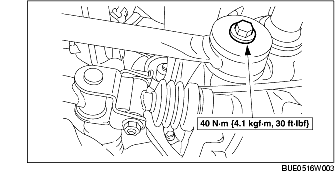

1. Remove the change control rod transaxle bolt and nut.
2. Remove the change control rod.
3. Install in the reverse order of removal.

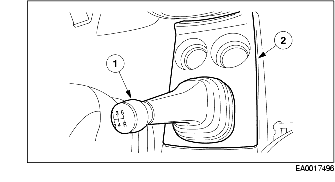

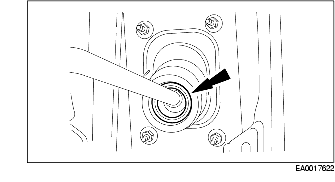

1. Remove the center console trim and gearshift lever boot.

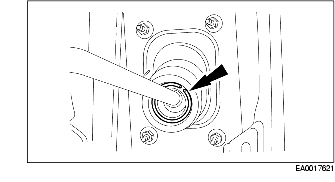

2. Remove the snap ring.
3. Remove the plastic clip.

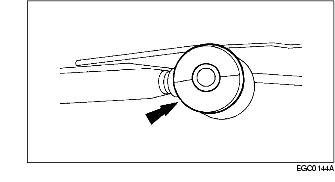

4. Remove the rubber bushing.
5. Disconnect the change control rod.
6. Remove the gearshift lever.
7. Install in the reverse order of removal.

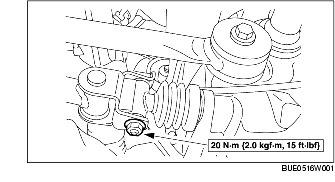

1. Remove the extension bar bolt.

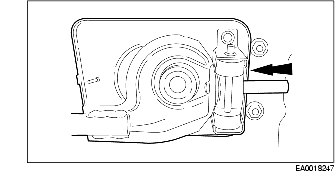

2. Remove the extension bar bushing.
3. Install in the reverse order of removal.
1. Remove the gearshift lever.

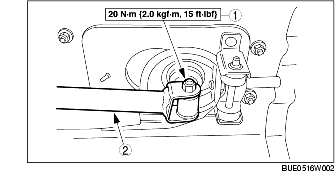

2. Remove the nuts.
3. Remove the extension bar bolt.
4. Remove the extension bar from the vehicle.
5. Install in the reverse order of removal.

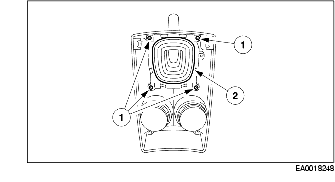

1. Remove the center console trim and gearshift lever boot.
2. Remove the gearshift lever boot.
3. Install in the reverse order of removal.
