TRANSAXLE SUPPORT INSULATOR LOWER (FRONT) REMOVAL/INSTALLATION [LA4AX-EL (CD4E)]

id0517a5805100

1. Lift up the vehicle.

2. Remove the splash shield.

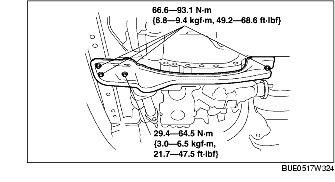

3. Remove the cross brace.

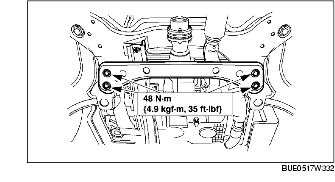

4. Remove the cross brace.

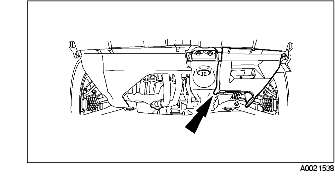

5. Remove the top and bottom mount cups.

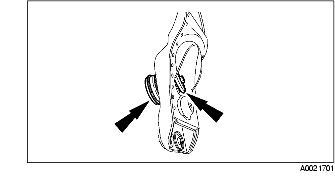

6. Remove the rubber mount.

Note

• Be sure to use a new rubber mount during installation. Do not reuse the old rubber mount.

7. Install in the reverse order of removal.
