P POSITION SWITCH INSPECTION

1. Disconnect the negative battery cable.

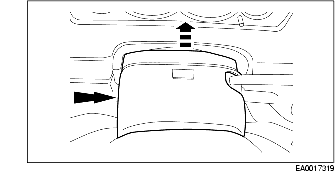

2. Remove the steering column upper cover.

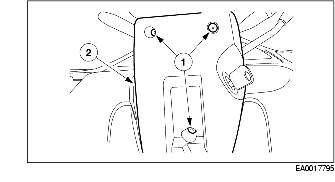

3. Remove the steering column lower cover.

(1) Remove the screws.

(2) Remove the steering column lower cover.

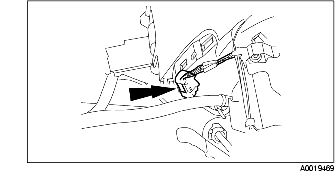

4. Disconnect the selector lever connector.

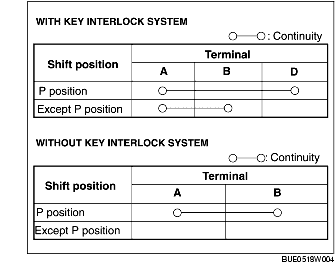

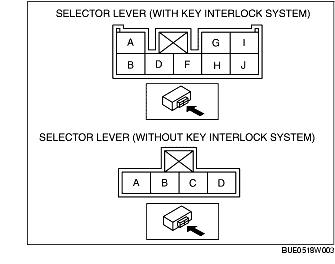

5. Inspect every terminal of the selector lever for continuity.

• If not as specified, replace the selector lever.

Standard

6. Connect the selector lever connector.

7. Install the steering column lower cover.

(1) Install the steering column lower cover.

(2) Install the screws.

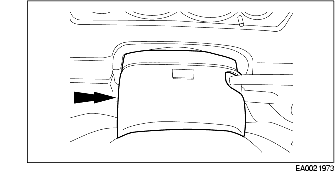

8. Install the steering column upper cover.

9. Connect the negative battery cable.
