SELECTOR CABLE REMOVAL

id051800801900

GF4AX-EL

1. Remove the steering column upper cover.

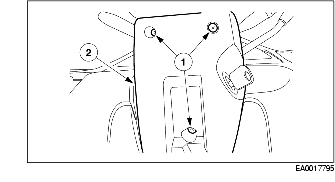

2. Remove the steering column lower cover.

(1) Remove the screws.

(2) Remove the steering column lower cover.

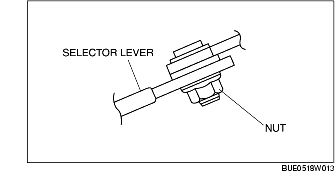

3. Remove the nut, then remove the selector cable from the selector lever.

4. Remove the selector cable from the steering column bracket.

5. Remove the selector cable nuts.

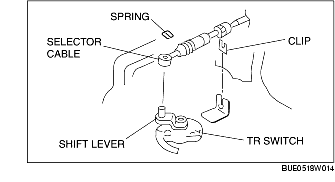

6. Detach the clip.

7. Remove the spring.

8. Remove the selector cable from the transaxle shift lever.

9. Remove the selector cable.

LA4AX-EL (CD4E)

1. Remove the steering column upper cover.

2. Remove the steering column lower cover.

(1) Remove the screws.

(2) Remove the steering column lower cover.

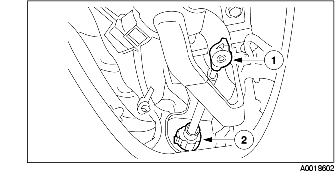

3. Remove the selector cable from the steering column bracket.

(1) Disconnect the selector cable from the selector lever.

(2) Disconnect the selector cable from the steering column bracket.

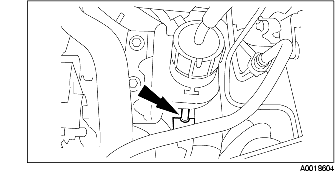

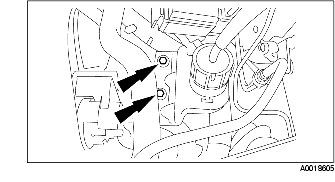

4. Remove the selector cable nuts.

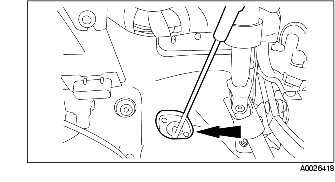

5. Remove the selector cable from the transaxle shift lever.

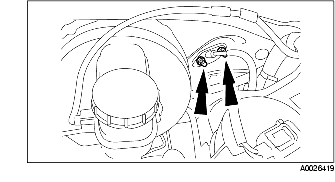

6. Remove the bolts.

7. Remove the selector cable.
