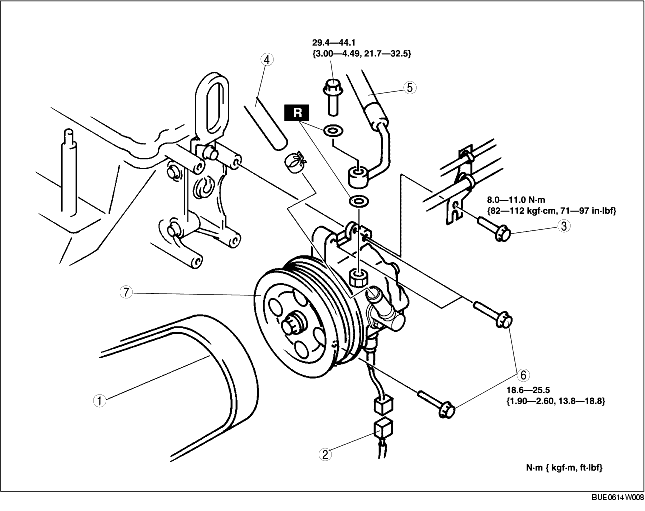

1.• Remove in the order indicated in the table.
2. Install in the reverse order of removal.
|
1
|
Drive belt
(See DRIVE BELT REPLACEMENT [L3].)
|
|
2
|
Pressure switch connector
|
|
3
|
Bolt
|
|
4
|
Suction hose
|
|
5
|
Pressure pipe
|
|
6
|
Bolts
|
|
7
|
Power steering oil pump
|
