POWER STEERING OIL PUMP DISASSEMBLY/ASSEMBLY [L3]

id0614008008a3

Note

•  The following procedure is for replacement of the O-ring, oil seal, gasket, and shaft component. Replace the oil pump as a single unit if there is a malfunction in the oil pump body, cam ring, side plate, rotor, or other parts of the component.

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

3.  After assembly, verify that the shaft rotates smoothly when turning it by hand.

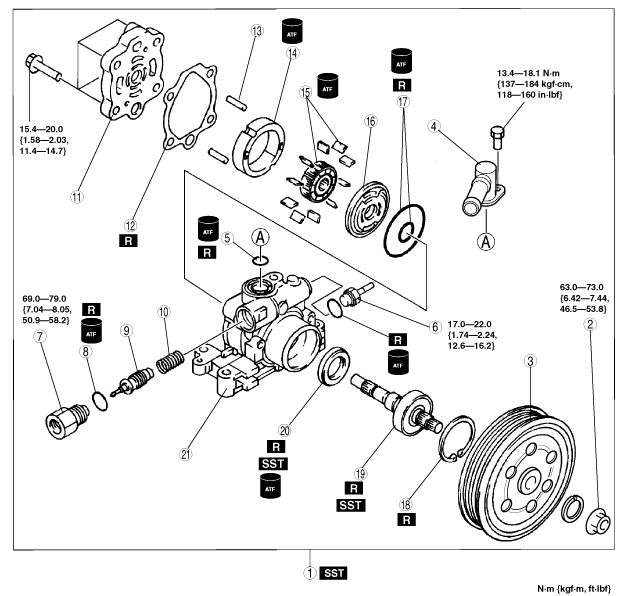

atraaw00003561

1	Power steering oil pump component (See Power Steering Oil Pump Component Disassembly Note.)
2	Nut
3	Pulley
4	Suction pipe
5	O-ring
6	Pressure switch
7	Connector
8	O-ring
9	Spool
10	Spring
11	Rear cover
12	Gasket
13	Pins
14	Cam ring (See Cam Ring Assembly Note.)
15	Rotor vanes (See Rotor Vane Assembly Note.)
16	Side plate
17	O-ring
18	Snap ring
19	Shaft component (See Shaft Component Disassembly Note.) (See Shaft Component Assembly Note.)
20	Oil seal (See Oil Seal Assembly Note.)
21	Pump body

Power Steering Oil Pump Component Disassembly Note

1.  Secure the power steering oil pump to the vise using the SST.

atraaw00002232

Shaft Component Disassembly Note

1.  Remove the shaft component using a press.

atraaw00002233

Oil Seal Assembly Note

1.  Install the oil seal to the pump body using the SST and a plastic hammer.

atraaw00002234

Shaft Component Assembly Note

1.  Install the shaft component to the pump body using the SST and a press.

atraaw00002235

Rotor Vane Assembly Note

1.  Install the rotor with the identification mark facing the rear cover.

2.  Install the ten vanes in the rotor with the rounded edges facing outwards.

atraaw00001909

Cam Ring Assembly Note

1.  Install the cam ring with the identification mark facing the rear cover.

atraaw00002236
