COOLING PIPE REMOVAL/INSTALLATION [YF (2.0 L Zetec), AJ (3.0 L Duratec)]

id0614008016b6

Removal/Installation

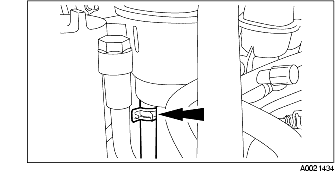

1. Disconnect the hose from the power steering fluid reservoir tank.

2. Disconnect the power steering cooler hose.

3. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

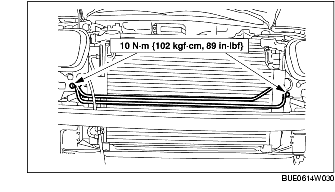

4. Remove the nuts and cooling pipe.

5. Install in the reverse order of removal.

• Add the power steering fluid, bleed the system, and then inspect the system for leakage.
