ACCUMULATOR TANK REMOVAL/INSTALLATION [L.H.D.]

1. Discharge the refrigerant from the system. (See DISCHARGING AND RECOVERY.)

2. Remove the A/C cycling switch. (See A/C CYCLING SWITCH REMOVAL/INSTALLATION.)

3. Remove the nuts from the refrigerant line mounting bracket.

4. Disconnect the refrigerant line from the accumulator tank.

Caution

• Plug all ports to prevent contamination from dirt or moisture.

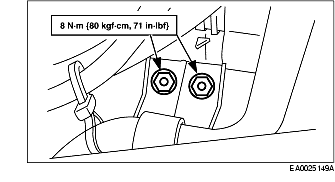

5. Remove the two accumulator tank mounting bracket nuts.

6. Disconnect the refrigerant line from the evaporator.

Caution

• Plug all ports to prevent contamination from dirt or moisture.

7. Remove the accumulator tank.

8. Install in the reverse order of removal.

(1) Lubricate the new A/C compressor with the correct amount of PAG Compressor Oil. (See COMPRESSOR OIL ADDING.)
