MAGNETIC CLUTCH ADJUSTMENT

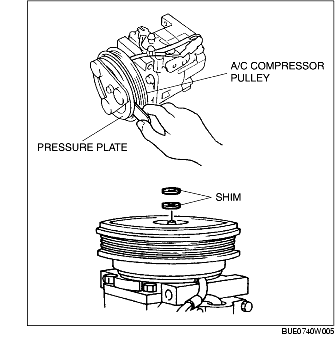

1. Measure the clearance around the entire circumference between the pressure plate and A/C compressor pulley using a feeler gauge.

2. Verify that the clearance.

• If not within the specification, remove the pressure plate and adjust the clearance by changing the shim (0.2 mm {0.008 in}, 0.5 mm {0.02 in}) or the number of shims.

Clearance

• 0.35-0.75 mm {0.014-0.029 in}
