BLOWER MOTOR REMOVAL/INSTALLATION

1. Remove the front side trim.

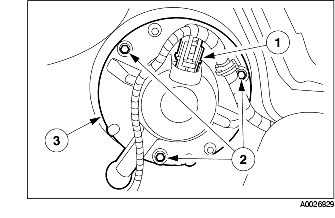

2. Remove the blower motor.

(1) Disconnect the connector.

(2) Remove the three washer screws. Lower the blower motor out of the housing.

(3) Remove the blower motor and cover, and lower the assembly from the housing.

3. Install in the reverse order of removal.
