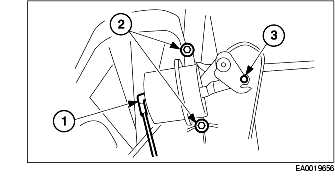

VACUUM CONTROL MOTOR (OUTSIDE AIR INLET) REMOVAL/INSTALLATION

1. Remove the vacuum control motor.

(1) Disconnect the vacuum line.

(2) Remove the two screws.

(3) Disconnect the vacuum control motor from the door lever.

2. Install in the reverse order of removal.
