AIR BAG DISPOSAL

id081000802700

Warning

• A live (undeployed) air bag module or pre-tensioner front buckle may accidentally operate (deploy) when it is disposed of and cause serious injury. Do not dispose of a live (undeployed) air bag module and pre-tensioner front buckle. If the SSTs (Deployment tool and Adapter harness) are not available, consult the nearest Mazda representative for assistance.

Caution

• Deploying the air bag modules and pre-tensioner front buckles inside the vehicle may cause damage to the vehicle interior. When the vehicle is not to be scrapped, always deploy the air bag modules and pre-tensioner front buckles outside the vehicle.

• If the vehicle is to be scrapped, or when disposing of any air bag modules or pre-tensioner front buckles, operate (deploy) them inside the vehicle by following the deployment procedure below and using the SST (Deployment tool).

Deployment Procedure for Inside of Vehicle

1. Inspect the SST (Deployment tool). (See INSPECTION OF SST (DEPLOYMENT TOOL).)

2. Move the vehicle to an open space, away from strong winds, and close all of the vehicle doors and windows.

3. Turn the ignition switch to the LOCK position.

4. Disconnect the negative battery cable and wait for 1 min or more.

5. Follow the procedure below for operating (deploying) the applicable air bag module or pre-tensioner front buckle.

Driver-side Air Bag Module

Three-spoke type

Warning

• Always wear safety glasses when repairing the air bag system vehicle and when servicing an air bag module or pre-tensioner front buckle. This will reduce the risk of injury if the air bag accidentally operates (deploys).

• Carry a live air bag module with the air bag and deployment side away from your body. This will reduce the risk of injury if the air bag accidentally operates (deploys).

• Remote operation (deployment) is to be performed outdoors with all personnel at least 6.1 m {20 ft} away to ensure personal safety. Due to the loud noise which is produced when the air bag is operated (deployed), hearing protection is required.

• Do not position the driver-side air bag module with the tear seam facing down. The forces of the operating (deploying) air bag can cause it to ricochet and cause personal injury.

1. Remove the driver-side air bag module.

(See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

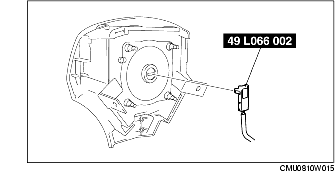

2. Connect the SSTs (Adapter harness) to the driver-side air bag module as shown in the figure.

3. Install the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

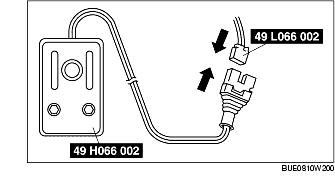

4. Connect the SSTs (Deployment tool) to the SSTs (Adapter harness).

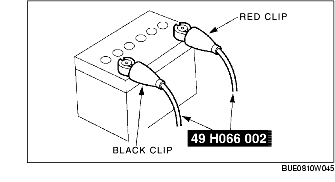

5. Connect the SST (Deployment tool) to the battery.

(1) Connect the red clip to the positive battery terminal.

(2) Connect the black clip to the negative battery terminal.

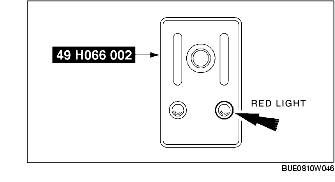

6. Verify that the red light on the SST (Deployment tool) is illuminated.

7. Make sure all personnel are at least 6.1 m {20 ft} away from the air bag module.

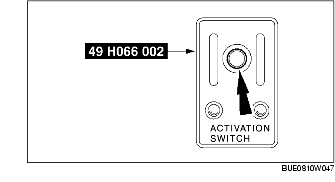

8. Using the SST (Deployment tool), operate (deploy) the air bag module by pressing the activation switch.

9. To allow for cooling, wait at least 15 min or more before approaching the operated (deployed) air bag.

10. Dispose of the operated (deployed) air bag module.

Four-spoke type

Warning

• Carry a live air bag module with the air bag and deployment side away from your body. This will reduce the risk of injury if the air bag accidentally operates (deploys).

• Do not position the driver-side air bag module with the tear seam facing down. The forces of the operating (deploying) air bag can cause it to ricochet and cause personal injury.

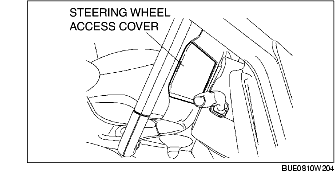

1. Remove the steering wheel access cover.

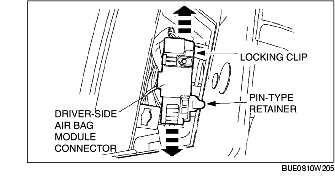

2. Disconnect the driver-side air bag module connector.

(1) Separate the driver-side air bag module connector pin-type retainer from the steering wheel bracket.

(2) Push to release the driver-side air bag module connector locking clip.

(3) Disconnect the driver-side air bag module connector.

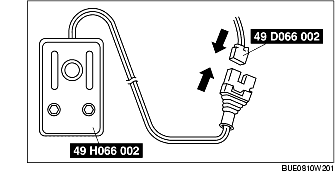

3. Connect the SSTs (49 D066 002) to the driver-side air bag module connector.

4. Connect the SSTs (Deployment tool) to the SSTs (Adapter harness).

5. Connect the SST (Deployment tool) to the battery.

(1) Connect the red clip to the positive battery terminal.

(2) Connect the black clip to the negative battery terminal.

6. Verify that the red light on the SST (Deployment tool) is illuminated.

7. Make sure all personnel are at least 6.1 m {20 ft} away from the air bag module.

8. Using the SST (Deployment tool), operate (deploy) the air bag module by pressing the activation switch.

9. To allow for cooling, wait at least 15 min or more before approaching the operated (deployed) air bag.

10. Dispose of the operated (deployed) air bag module.

Passenger-side Air Bag Module

Warning

• Carry a live air bag module with the air bag and deployment side away from your body. This will reduce the risk of injury if the air bag accidentally operates (deploys).

• Do not position the driver-side air bag module with the tear seam facing down. The forces of the operating (deploying) air bag can cause it to ricochet and cause personal injury.

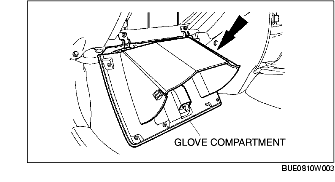

1. Fully open the glove compartment.

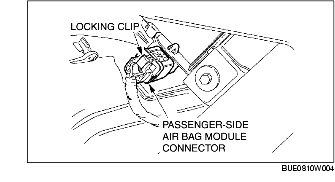

2. Disconnect the passenger-side air bag module outer connector through the glove compartment opening.

(1) Push to release the passenger-side air bag module connector locking clip.

(2) Disconnect the passenger-side air bag module connector.

3. Connect the SSTs (49 D066 002) to the passenger-side air bag module connector.

4. Connect the SSTs (Deployment tool) to the SSTs (Adapter harness).

5. Connect the SST (Deployment tool) to the battery.

(1) Connect the red clip to the positive battery terminal.

(2) Connect the black clip to the negative battery terminal.

6. Verify that the red light on the SST (Deployment tool) is illuminated.

7. Make sure all personnel are at least 6.1 m {20 ft} away from the air bag module.

8. Using the SST (Deployment tool), operate (deploy) the air bag module by pressing the activation switch.

9. To allow for cooling, wait at least 15 min or more before approaching the operated (deployed) air bag.

10. Dispose of the operated (deployed) air bag module.

Side Air Bag Module

1. Disconnect the side air bag connector.

2. Connect the SST (49 E066 002) to the side air bag module connector.

3. Connect the SSTs (Deployment tool) to the SSTs (Adapter harness).

4. Connect the SST (Deployment tool) to the battery.

(1) Connect the red clip to the positive battery terminal.

(2) Connect the black clip to the negative battery terminal.

5. Verify that the red light on the SST (Deployment tool) is illuminated.

6. Make sure all personnel are at least 6.1 m {20 ft} away from the air bag module.

7. Using the SST (Deployment tool), operate (deploy) the air bag module by pressing the activation switch.

8. To allow for cooling, wait at least 15 min or more before approaching the operated (deployed) air bag.

9. Dispose of the operated (deployed) air bag module.

Deployment Procedure for Outside of Vehicle

1. Inspect the SST (Deployment tool).

(See INSPECTION OF SST (DEPLOYMENT TOOL).)

2. Turn the ignition switch to the LOCK position.

3. Disconnect the negative battery cable and wait for 1 min or more.

4. Follow the procedure below for operating (deploying) the applicable air bag module or pre-tensioner front buckle.

Driver-side Air Bag Module

Warning

• Carry a live air bag module with the air bag and deployment side away from your body. This will reduce the risk of injury if the air bag accidentally operates (deploys).

• Do not position the driver-side air bag module with the tear seam facing down. The forces of the operating (deploying) air bag can cause it to ricochet and cause personal injury.

1. Remove the driver-side air bag module from the vehicle. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

Warning

• If the driver-side air bag module is not correctly installed to the wheel, serious injury may occur when the air bag module is operated (deployed). When installing the driver-side air bag module to the wheel, make sure that the driver-side air bag module is facing up.

2. For the three-spoke type, connect the SST (adapter wiring harness) to the driver-side air bag module.

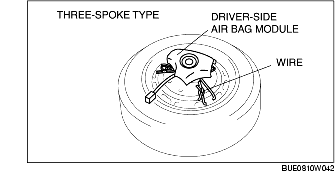

3. Position the driver-side air bag module on the center of the wheel and tire assembly with the air bag module facing up.

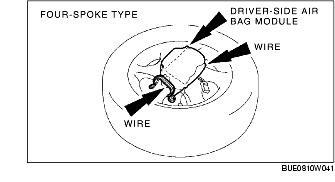

4. For the four-spoke type, secure the driver-side air bag module to the wheel by wrapping the wire (diameter 1.25 mm² {0.002 in²} or more) through the wheel and around the bracket at least four times. For the three-spoke type, by wrapping the wire (diameter 1.25 mm² {0.002 in²} or more) through the wheel and around the bracket at least four times.

5. For the four-spoke type, connect the SST (adapter wiring harness) to the driver-side air bag module connector.

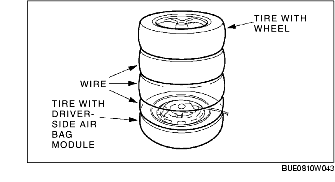

6. Stack three tires and one wheel and tire component on top of the driver-side air bag module.

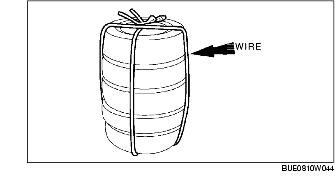

7. Secure all of the tires together with wire.

8. Connect the SST (Deployment tool).

9. Connect the SST (Deployment tool) to the battery.

(1) Connect the red clip to the positive battery terminal.

(2) Connect the black clip to the negative battery terminal.

10. Verify that the red light on the SST (Deployment tool) is illuminated.

11. Make sure all personnel are at least 6.1 m {20 ft} away from the air bag module.

12. Using the SST (Deployment tool), operate (deploy) the air bag module by pressing the activation switch.

13. To allow for cooling, wait at least 15 min or more before approaching the operated (deployed) air bag.

14. Dispose of the operated (deployed) air bag module.

Passenger-side Air Bag Module

Warning

• Always wear safety glasses when repairing a vehicle with an air bag system or servicing the air bag module or pre-tensioner front buckle. This will reduce the risk of injury if the air bag accidentally operates (deploys).

• Carry a live air bag module with the air bag and deployment side away from your body. This will reduce the risk of injury if the air bag accidentally operates (deploys).

• Do not position the side air bag module with the tear seam facing down or the attaching studs facing upward. The forces of the operating (deploying) air bag can cause it to ricochet and cause personal injury.

1. Remove the passenger-side air bag module from the vehicle. (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

Warning

• If the passenger-side air bag is not correctly installed to the tire, serious injury may occur when the air bag module is operated (deployed). When installing the passenger-side air bag module to the tire, make sure the air bag module is facing the appropriate direction.

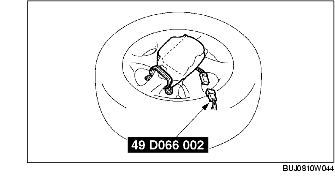

2. Position the passenger-side air bag module in the tire with the passenger-side air bag module facing the center of the tire.

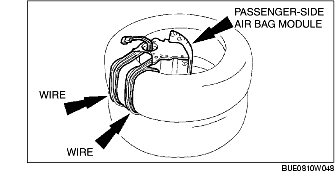

3. Secure the passenger-side air bag module to the tire by wrapping the wire (diameter 1.25 mm² {0.002 in²} or more) around the tire and bracket at least four times.

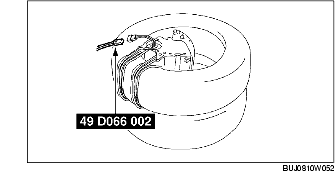

4. Connect the SST (adapter wiring harness) to the passenger-side air bag module connector.

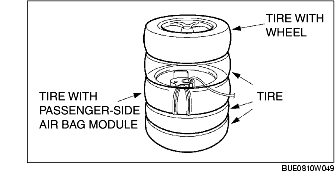

5. Stack three tires, one wheel and tire component and the passenger-side air bag module as shown in the figure.

6. Secure all of the tires together with wire.

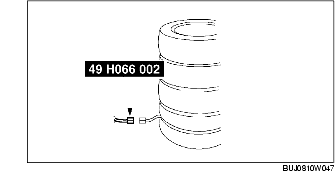

7. Connect the SST (Deployment tool).

8. Connect the SST (Deployment tool) to the battery.

(1) Connect the red clip to the positive battery terminal.

(2) Connect the black clip to the negative battery terminal.

9. Verify that the red light on the SST (Deployment tool) is illuminated.

10. Make sure all personnel are at least 6.1 m {20 ft} away from the air bag module.

11. Using the SST (Deployment tool), operate (deploy) the air bag module by pressing the activation switch.

12. To allow for cooling, wait at least 15 min or more before approaching the operated (deployed) air bag.

13. Dispose of the operated (deployed) air bag module.

Side Air Bag Module

Warning

• Carry a live air bag module with the air bag and deployment side away from your body. This will reduce the risk of injury if the air bag accidentally operates (deploys).

• Do not position the side air bag module with the tear seam facing down or the installation studs facing upward. The forces of the operating (deploying) air bag can cause it to ricochet and cause personal injury.

1. Remove the side air bag module from the vehicle. (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

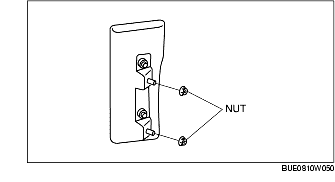

2. Install the side air bag module nuts.

Warning

• If the side air bag module is not correctly installed to the tire, serious injury may occur when the air bag module is operated (deployed). When installing the side air bag module to the tire, make sure the air bag module is facing the appropriate direction.

3. Position the side air bag module in the tire with the side air bag module facing the center of the tire.

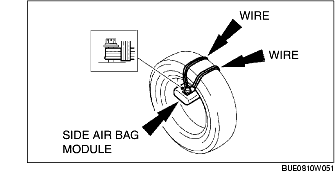

4. Secure the side air bag module to the tire by wrapping the wire (diameter 1.25 mm² {0.002 in²} or more) around the tire and nuts at least four times.

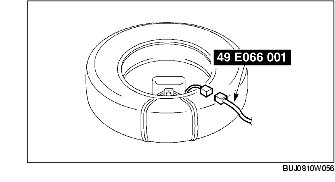

5. Connect the SST (adapter wiring harness) to the side air bag module connector.

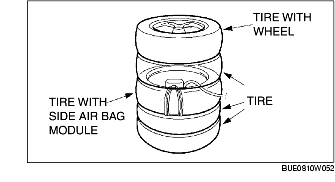

6. Stack three tires, one wheel and tire component, and the side air bag module as shown in the figure.

7. Secure all of the tires together with wire.

8. Connect the SST (Deployment tool).

9. Connect the SST (Deployment tool) to the battery.

(1) Connect the red clip to the positive battery terminal.

(2) Connect the black clip to the negative battery terminal.

10. Verify that the red light on the SST (Deployment tool) is illuminated.

11. Make sure all personnel are at least 6.1 m {20 ft} away from the air bag module.

12. Using the SST (Deployment tool), operate (deploy) the air bag module by pressing the activation switch.

13. To allow for cooling, wait at least 15 min or more before approaching the operated (deployed) air bag.

14. Dispose of the operated (deployed) air bag module.
