STEP
|
INSPECTION
|
ACTION
|
|
|---|---|---|---|
|
1
|
INSPECT SUSPECTED DOOR LOCK OPERATION
Manually operate the suspected door lock, then inspect it for restriction or sticking.
Is the door lock stuck?
|
Yes
|
Repair an inoperative part if necessary.
Inspect the system for normal operation.
|
|
No
|
Go to the next step.
|
||
|
2
|
INSPECT DOOR LOCK ACTUATOR LOCK OPERATION
Disconnect the suspected door latch and lock actuator.

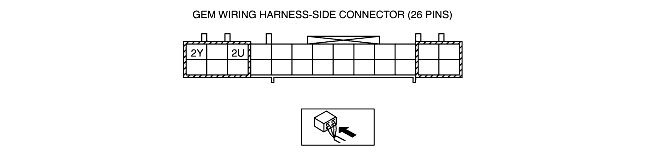

Operate the door lock switch to the LOCK position, and then measure the voltage between the following terminals and ground: -Appropriate terminal of the malfunctioning door latch and lock actuator connector and ground -GEM connector terminal 2Y (harness-side) and ground
Is the voltage 10 V or more?
|
Yes
|
Go to the next step.
|
|
No
|
Repair the circuit.
Inspect the system for normal operation.
|
||
|
3
|
INSPECT DOOR LOCK ACTUATOR "UNLOCK" OPERATION
Operate the door lock switch to the UNLOCK position, then measure the voltage between the following terminals and ground: -Appropriate terminal of the malfunctioning door latch and lock actuator connector and ground -GEM connector terminal 2U (harness-side) and ground
Is the voltage 10 V or more?
|
Yes
|
Install a new door latch and lock actuator. (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.) (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
Inspect the system for normal operation.
|
|
No
|
Repair the circuit.
Inspect the system for normal operation.
|
||
|
|
|||
