STEP
|
INSPECTION
|
ACTION
|
|
|---|---|---|---|
|
1
|
INSPECT WINDSHIELD WIPER OPERATION IN LO POSITION
Does the windshield wiper operate normally in LO position?
|
Yes
|
Go to the next step.
|
|
No
|
Perform troubleshooting according to "No.5 WINDSHIELD WIPER DOES NOT OPERATE NORMALLY IN LO POSITION". (See No.5 WINDSHIELD WIPER DOES NOT OPERATE NORMALLY IN LO POSITION.)
|
||
|
2
|
INSPECT RELATED WIRING HARNESS FOR SHORT TO GROUND
Disconnect the windshield wiper motor connector.
Measure the resistance between wiper and washer switch terminal M and ground.
Is the resistance more than 10,000 ohms?
|
Yes
|
Go to the next step.
|
|
No
|
Repair the related wiring harness.
|
||
|
3
|
INSPECT RELATED WIRING HARNESS FOR OPEN CIRCUIT

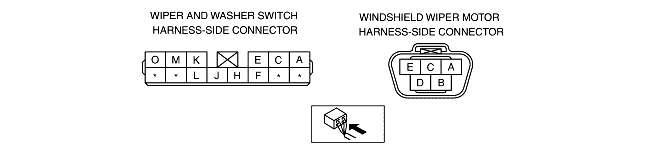

Measure the resistance between wiper and washer switch terminal M and windshield wiper motor terminal E.
Is the resistance less than 5 ohms?
|
Yes
|
Inspect the windshield wiper motor.
|
|
No
|
Repair the related wiring harness.
|
||
|
|
|||
