No.3 BACK-UP LIGHT STAYS ON

id0903g4815400

POSSIBLE CAUSE

• Malfunction in the TR switch

• Malfunction in the related wiring harness

Diagnostic Procedure

STEP

INSPECTION

ACTION

1
INSPECT TR SWITCH CONNECTION
Turn the ignition switch to the LOCK position.
Disconnect the TR switch connector.
Turn the ignition switch to the ON position.

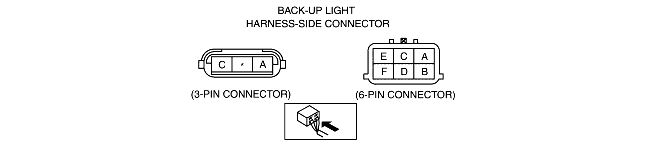

Measure the resistance between TR switch terminals A and E.
Is the resistance less than 5 ohms?
Yes
Replace the TR switch.
No
Repair the related wiring harness.
