FRONT DOOR ADJUSTMENT

Note

• Make sure the rear door is within the specification before making any adjustments to the front door. (See BODY AND ACCESSORIES TECHNICAL DATA.)

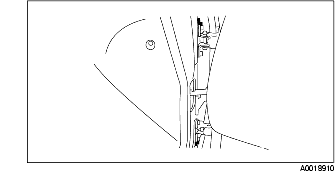

1. Mark the positions of the front door hinges to use as reference points.

2. Loosen the front door hinge and body installation bolts just enough to permit movement.

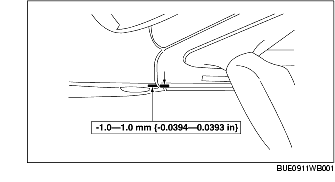

3. Adjust the front door alignment.

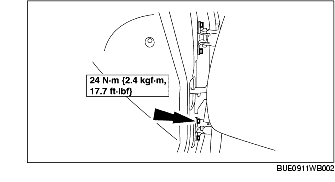

4. Tighten the front door hinge and body installation bolt.
