FILAMENT REPAIR

id091200417200

Note

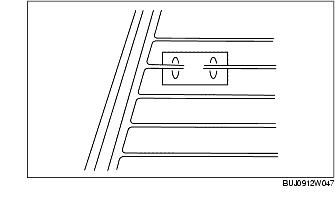

• Any breaks longer than 25 mm cannot be repaired. The rear window glass must be replaced. Breaks shorter than 25 mm filament can be successfully repaired by using the following procedure.

1. Prepare the following kit:

(1) Repair kit.

2. The vehicle should be allowed to reach 16°C (60°FL) or above.

3. Clean the repair area with denatured alcohol.

4. Place the grid line mask over the break and align the cut-out slots on either side of the repair area.

5. Apply the epoxy to the repair area.

6. Remove the mask without disturbing the epoxy.

7. Use the special tool to heat the repair area for 1 to 2 minutes at a distance of about 25-50 mm (1-2 inches). This procedure should heat the repair area to approximately 149× C (300× FL).

8. The heated rear defroster may be energized immediately after the repair. Optimum hardness and adhesion will occur after 24 hours. Do not disturb the repair area until that time.
