POWER WINDOW MAIN SWITCH INSPECTION
id091200419000

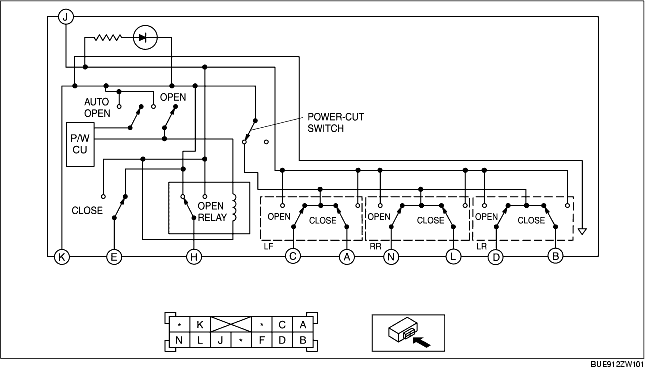

RHD
1. Verify that the continuity between the wiper and washer switch terminals is as indicated in the table.
• If not as indicated in the table, replace the wiper and washer switch.
|
Circuit tested
|
Terminals connected with tester
|
Switch position
|
Normal status
|
|
Right front window circuit
|
Terminals J-E
|
Pull (Close)
|
Continuity detected
|
|
Terminals J-H
|
Press (Open)
|
Continuity detected
|
|
Terminals E-H
Terminals K-E
Terminals K-H
|
OFF (Original position)
|
Continuity detected
|
|
Left front window circuit
|
Terminals J-A
|
Pull (Close)
|
Continuity detected
|
|
Terminals J-C
|
Press (Open)
|
Continuity detected
|
|
Terminals C-A
Terminals K-C
Terminals K-A
|
OFF (Original position)
|
Continuity detected
|
|
Left rear window circuit
|
Terminals J-B
|
Pull (Close)
|
Continuity detected
|
|
Terminals J-D
|
Press (Open)
|
Continuity detected
|
|
Terminals B-D
Terminals K-B
Terminals K-D
|
OFF (Original position)
|
Continuity detected
|
|
Right rear window circuit
|
Terminals J-L
|
Pull (Close)
|
Continuity detected
|
|
Terminals J-N
|
Press (Open)
|
Continuity detected
|
|
Terminals L-N
Terminals K-L
Terminals K-N
|
OFF (Original position)
|
Continuity detected
|

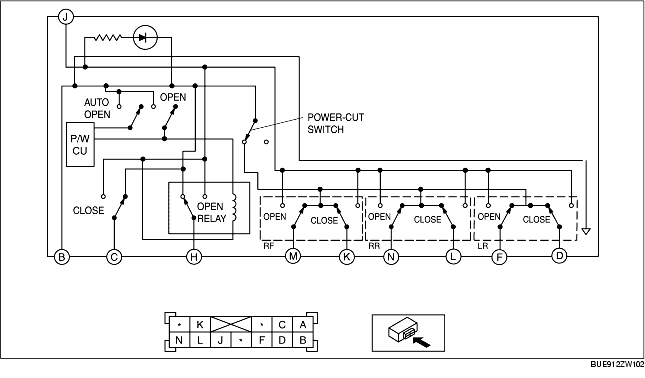

LHD
1. Verify that the continuity between the wiper and washer switch terminals is as indicated in the table.
• If not as indicated in the table, replace the wiper and washer switch.
|
Circuit tested
|
Terminals connected with tester
|
Switch position
|
Normal status
|
|
Left front window circuit
|
Terminals J-C
|
Pull (Close)
|
Continuity detected
|
|
Terminals J-H
|
Press (Open)
|
Continuity detected
|
|
Terminals C-H
Terminals B-C
Terminals B-H
|
OFF (Original position)
|
Continuity detected
|
|
Right front window circuit
|
Terminals J-K
|
Pull (Close)
|
Continuity detected
|
|
Terminals J-M
|
Press (Open)
|
Continuity detected
|
|
Terminals K-M
Terminals B-K
Terminals B-M
|
OFF (Original position)
|
Continuity detected
|
|
Left rear window circuit
|
Terminals J-D
|
Pull (Close)
|
Continuity detected
|
|
Terminals J-F
|
Press (Open)
|
Continuity detected
|
|
Terminals D-F
Terminals B-D
Terminals B-F
|
OFF (Original position)
|
Continuity detected
|
|
Right rear window circuit
|
Terminals J-L
|
Pull (Close)
|
Continuity detected
|
|
Terminals J-N
|
Press (Open)
|
Continuity detected
|
|
Terminals L-N
Terminals B-L
Terminals B-N
|
OFF (Original position)
|
Continuity detected
|
