POWER WINDOW SUBSWITCH INSPECTION
id091200419200

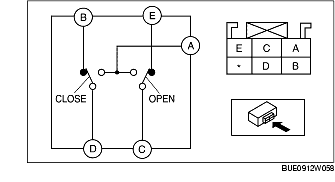

1. Verify that the continuity between the wiper and washer switch terminals is as indicated in the table.
• If not as indicated in the table, replace the wiper and washer switch.
|
Circuit tested
|
Terminals connected with tester
|
Switch position
|
Normal status
|
|
Power window subswitch
|
Terminals A-D
|
Pull (Close)
|
Continuity detected
|
|
Terminals A-C
|
Press (Open)
|
Continuity detected
|
|
Terminals B-D
Terminals E-C
|
OFF (Original position)
|
Continuity detected
|
