POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the power outer mirror switch from the meter hood.

3. Caution

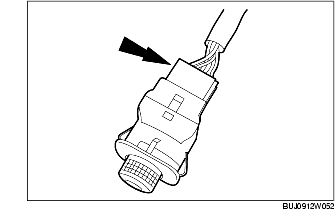

• When disconnecting the connector, be sure to release the retaining clips. Failure to release the retaining clips may cause damage to the switch.

Disconnect the connector.

4. Install in the reverse order of removal.
