POWER OUTER MIRROR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the front door trim.

3. Remove the inner garnish.

(1) If equipped, disconnect the speaker connector.

4. Remove the power outer mirror.

(1) Disconnect the connector.

(2) Remove the screw.

(3) Remove the power outer mirror.

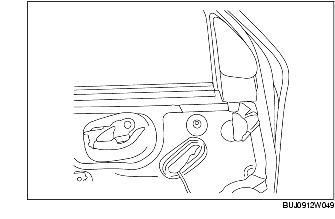

• Route the wiring harness between the opening in the front door and the wiring harness.

5. Install in the reverse order of removal.
