QUARTER WINDOW GLASS REMOVAL

id091200801700

Note

• The molding is integrated with the outer surface of the quarter window glass. Since this molding must cut during window removal, always replace the quarter window glass with a new part if removed.

1.• Remove the C pillar trim.

2.• Remove the D pillar trim.

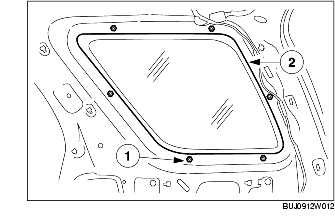

3. Remove the quarter window glass.

(1) Remove the nut.

(2) Remove the window glass.

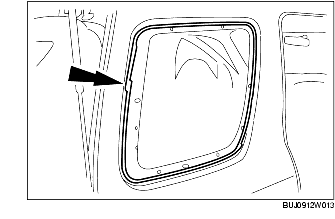

4. Remove the excess foam butyl from the quarter window opening.
