QUARTER WINDOW GLASS INSTALLATION

1. Apply foam butyl to the quarter window opening.

Note

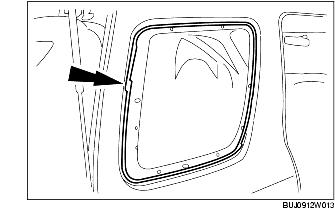

• When applying foam butyl, leave a slight overlap at the rear of the window opening to allow drainage.

2. Install the quarter window glass.

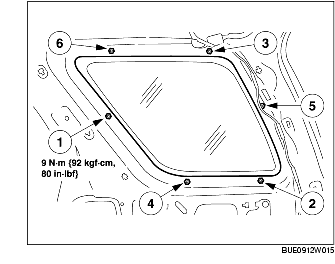

(1) Tighten the nuts in the sequence shown.

Note

• Loosely install the nuts before tightening.

3. Install the D-pillar trim.

4. Install the C-pillar trim.
