REAR WINDOW REGULATOR REMOVAL/INSTALLATION


id091200804200

1. Disconnect the negative battery cable.

2. Remove the rear door trim.

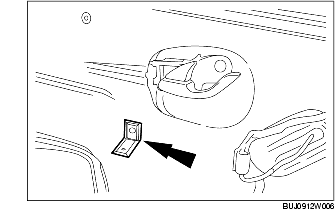

3. Remove the screw and the door trim panel bracket.

4. Position the door screen out of the way.

5. Lower the rear door glass to gain the access to the screw.

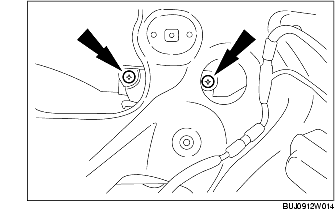

6. Remove the screws.

7. Support the glass in the fully-closed position.

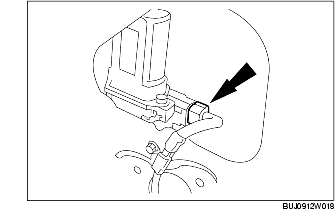

8.• Disconnect the rear power window motor connector. (Vehicles with power window system)

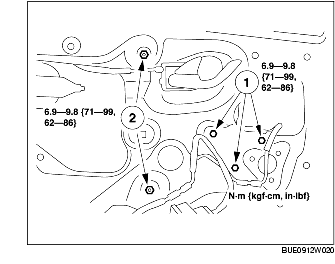

9. Remove the rear window regulator as a single unit.

(1) Remove the bolts.
(2) Remove the nuts.

10. Install in the reverse order of removal.

(1) Operate the door glass to verify correct window function.
