FRONT DOOR GLASS GUIDE REMOVAL/INSTALLATION

1. Remove the front door glass. (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

2. Remove the inner garnish.

(1) If equipped, disconnect the speaker connector.

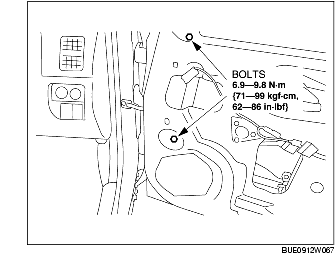

3. Remove the bolts.

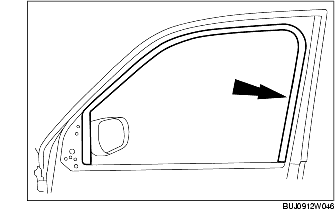

4. Remove the front door glass guide.

5. Install in the reverse order of removal.
