1.• Remove any grease or dirt from the affixing surface of the glass using the double-sided adhesive tape remover.

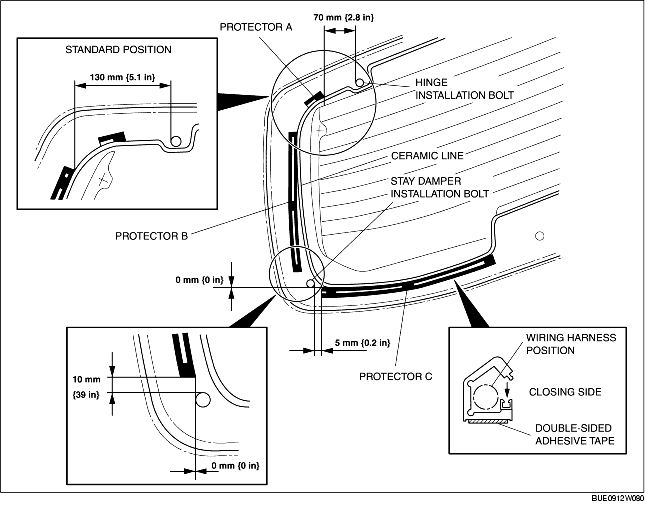

2. Affix protectors A and C so that the part that closes is on the side away from the glass and the protectors are positioned along the ceramic line as shown in the figure.
3. Affix protector B so that the hinged end is outside of the ceramic line and the protectors are positioned along the ceramic line as shown in the figure. The part that closes is on the side away from the glass.
4. Route the wiring harness inside the protectors and close the protectors.
