FRONT UNDER MIRROR REMOVAL/INSTALLATION


id091200805100

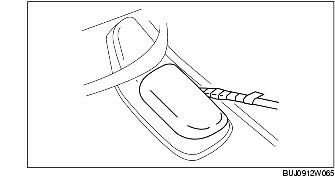

1. Remove the front under mirror cover using a tape-wrapped flathead screwdriver.

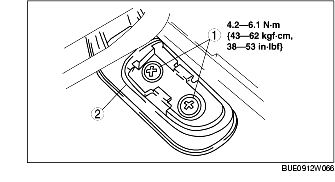

2. Remove the front under mirror.

(1) Remove the two screws.
(2) Remove the front under mirror.

3. Install in the reverse order of removal.
