REAR SEAT BACK REMOVAL/INSTALLATION

Removal

Note

• The RH rear seat back (40%) must be removed before the LH rear seat back (60%).

40% split rear seat backrest

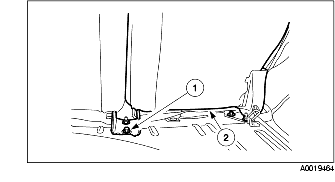

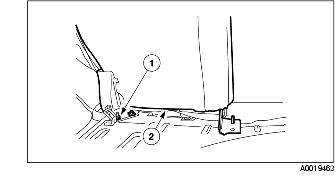

1. Remove the RH rear seat back (40%).

(1) Remove the bolts and the nuts.

(2) Remove the back.

60% split rear seat back

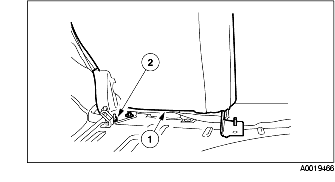

1. Remove the LH rear seat back. (60%)

(1) Remove the nuts and bolts.

(2) Remove the back.

Installation

Note

• The LH rear seat back (60%) must be installed before the RH rear seat back (40%).

60% split rear seat back

Note

• Do not tighten the nuts and bolts at this time.

1. Install the LH rear seat back (60%).

(1) Install the rear seat back.

(2) Install the nuts and bolts.

40% split rear seat back

1. Install the RH rear seat back (40%).

(1) Install the rear seat back.

(2) Install the nuts and bolts.

Note

• Do not tighten the nuts and bolts at this time.

60/40% rear seat back

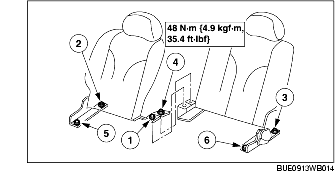

1. Tighten the 60/40% rear seat back nuts and bolts in the sequence shown in the figure.

The RH rear seat back (40%)

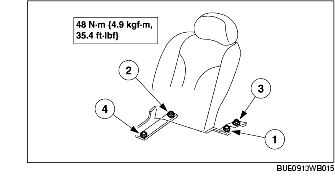

1. Tighten the RH rear seat back (40%) nuts and bolts in the sequence shown in the figure.
