REAR SEAT CUSHION DISASSEMBLY/ASSEMBLY

Note

• The figure shows the LH seat cushion (60%). The procedure for the RH seat cushion (40%) is the same.

1. Lift up the rear seat cushion.

2. Remove the rear seat cushion.

(1) Pull up on release lever and slide the seat out of the floor bracket.

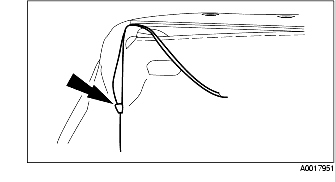

3. Disengage the retainer.

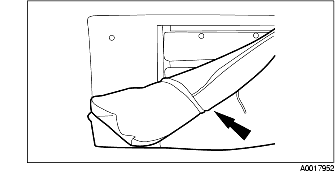

4. Unzip the rear seat cushion trim.

5. Remove the rear seat cushion trim from the rear seat cushion pad.

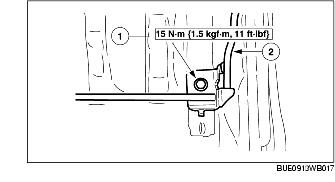

6. Remove the rear seat cushion bracket.

(1) Remove the two bolts.

(2) Remove the rear seat cushion bracket.

7. Assemble in the reverse order of disassembly.
