COIL ANTENNA REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

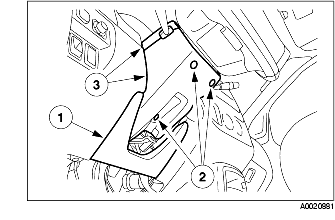

2. If necessary, pull down the tilt wheel lever to the open position.

3. Remove the steering column cover.

(1) Remove the lower dashboard cover.

(2) Remove the screws.

(3) Remove the steering column cover.

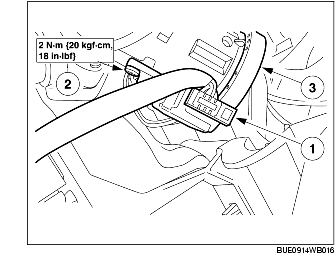

4. Remove the coil antenna.

(1) Disconnect the connector.

(2) Remove the screws.

(3) Remove the coil antenna.

5. Install in the reverse order of removal.

Note

• It is not necessary to replace keys and perform initial setting if the coil antenna is replaced with a new one.
