LIFTGATE LATCH REMOVAL/INSTALLATION

1. Remove the liftgate trim.

2. Disconnect the liftgate latch switch connector.

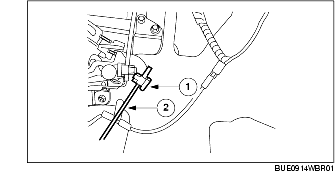

3. Disconnect the liftgate latch rod.

(1) Open the clip.

(2) Disconnect the rod.

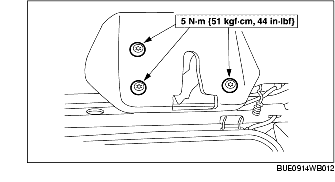

4. Remove and discard the liftgate latch bolts.

5. Remove the liftgate latch.

Note

• Make sure the liftgate latch release rod is not preloading the latch.It should be clipped in a relaxed state with no slack.

• Position the liftgate latch release rod by pushing outward to remove the slack.

6. Install in the reverse order of removal.
