BONNET LATCH RELEASE LEVER REMOVAL/INSTALLATION

id091400809100

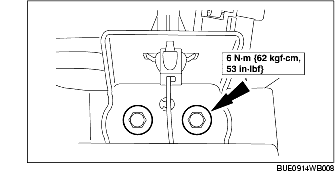

1. Remove the bonnet latch release lever bolts.

2. Remove the bonnet latch.(See BONNET LATCH REMOVAL/INSTALLATION.)

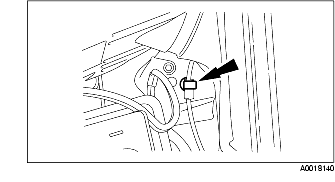

3. Remove the two bonnet latch release lever cable locators.

4. Remove the bonnet latch release lever.

Note

• The bonnet latch release lever cable must be pulled from the passenger-side of the dashboard.

5. Install in the reverse order of removal.
