GLASS PANEL REMOVAL/INSTALLATION


id091500800500

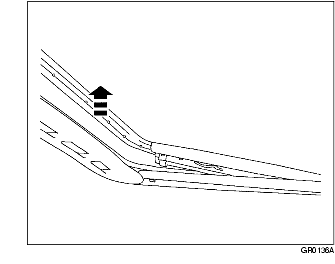

1. Open the glass panel to the vent position.

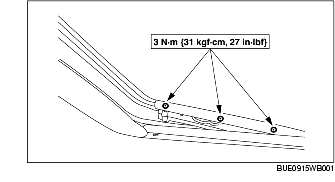

2.• Remove the six glass panel bolts.

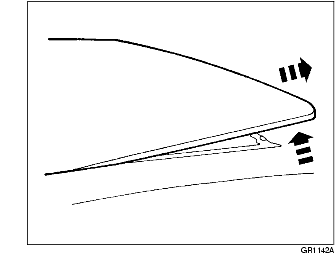

3. Remove the glass panel from outside the vehicle.

4. Install in the reverse order of removal.

(1) Inspect for correct alignment of the glass panel. See "GLASS PANEL ADJUSTMENT" in this section.
