GLASS PANEL ADJUSTMENT

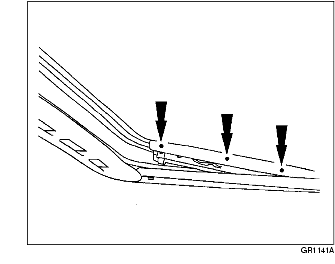

1. Loosen the six glass panel bolts.

2. Close the glass panel.

3. Adjust the glass panel.

Note

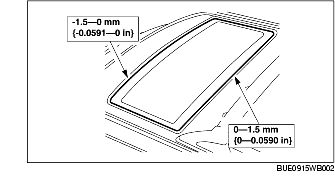

• The correct position of the glass panel to the roof panel should be 0-1.5 mm {0-0.0590 in} above the roof panel at the rear edge, and -1.5-0 mm {-0.0591-0 in} below the roof panel at the front edge of the panel.

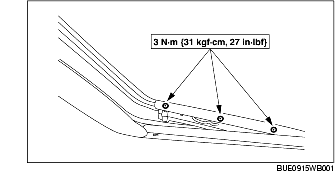

4. Tighten the glass panel bolts.
