COWL GRILLE REMOVAL/INSTALLATION

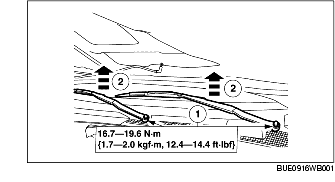

1. Remove the windshield wiper arm and blade.

(1) Remove the nut.

(2) Remove the windshield wiper arm and blade.

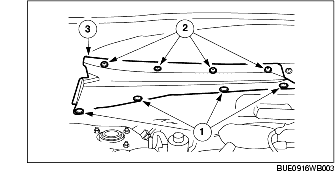

2. Remove the driver-side cowl grill.

(1) Remove the pins.

(2) Remove the screw caps and screws.

(3) Remove the cowl panel.

3. Remove the passenger-side cowl panel.

(1) Remove the pins.

(2) Remove the screw caps and screws.

(3) Remove the cowl panel.

4. Install in the reverse order of removal.
