SIDE STEP MOLDING REMOVAL/INSTALLATION

id091600801800

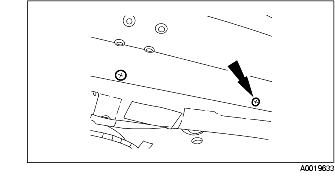

1. Remove the side step molding screws.

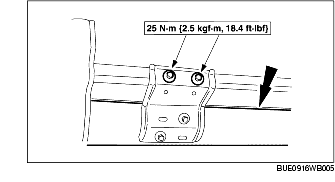

2. Remove the six step bar bracket, bolts, and the step bar (if equipped).

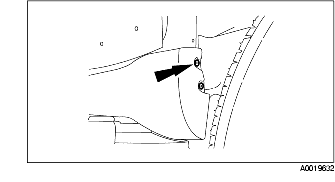

3. Remove the six side step molding pins.

4. Remove the side step molding.

Note

• The side step molding clips are one-time use only. New clips must be used during installation.

5. Install in the reverse order of removal.
