REAR DOOR MOLDING REMOVAL/INSTALLATION

id091600802300

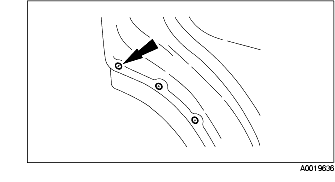

1. Remove the rear door molding screws.

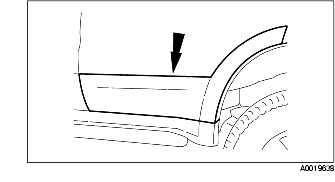

2. Remove the rear door molding.

Note

• The rear door molding clips are one-time use only. New clips must be used during installation.

3. Install in the reverse order of removal.
